The Engine of Objective Movement

Powered by advanced computer vision and deep learning, HoloMotion turns any camera into a clinical-grade biomechanical analysis system.

Precision at the Speed of Light

Skeletal Tracking

Our proprietary RGB-D fusion algorithms reconstruct 3D skeletal data in real-time.

HoloMotion Edge

Plug-and-play AI motion analysis appliances for every deployment scenario

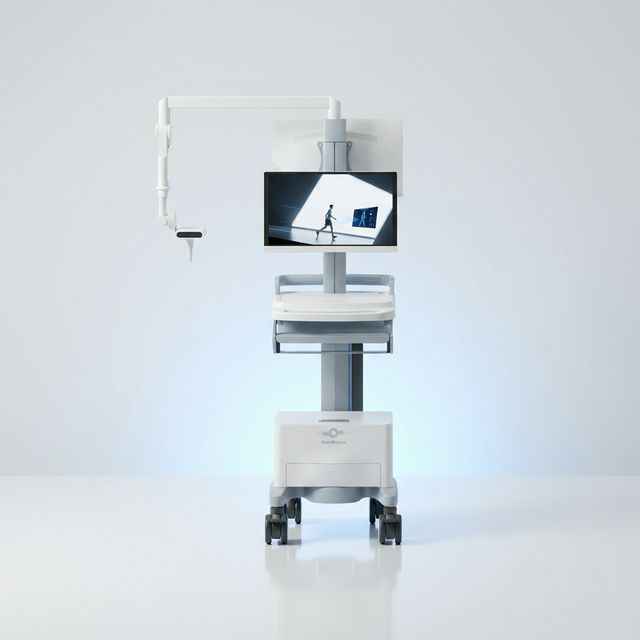

H800S
H800S
Medical Cart
Hospital-grade mobile platform for clinical deployment

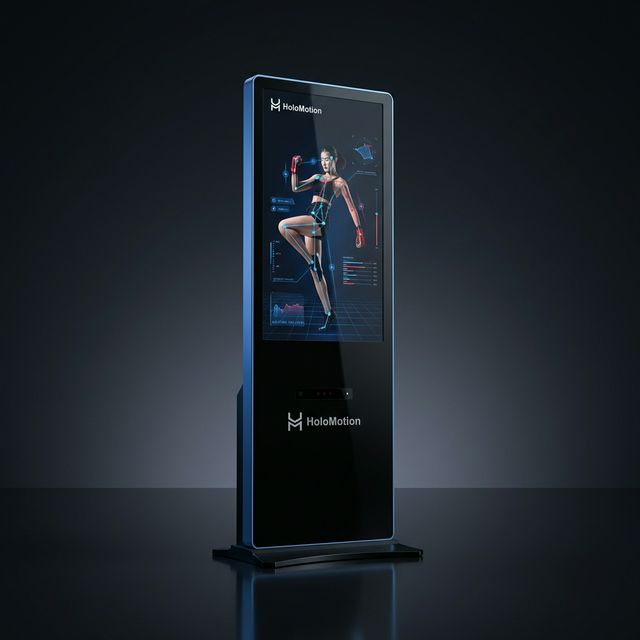

H700
H700
Upright All-in-One
Standalone kiosk-style unit for clinics and fitness centers

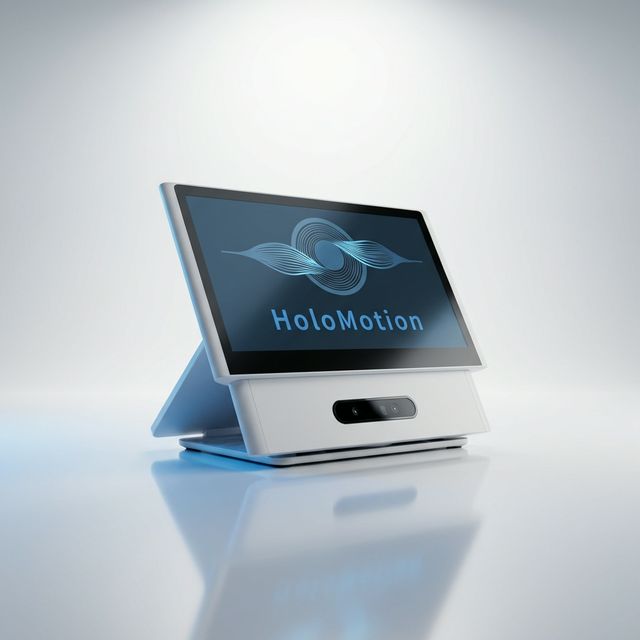

H500
H500
Portable All-in-One
Compact portable unit for field deployment and community screening

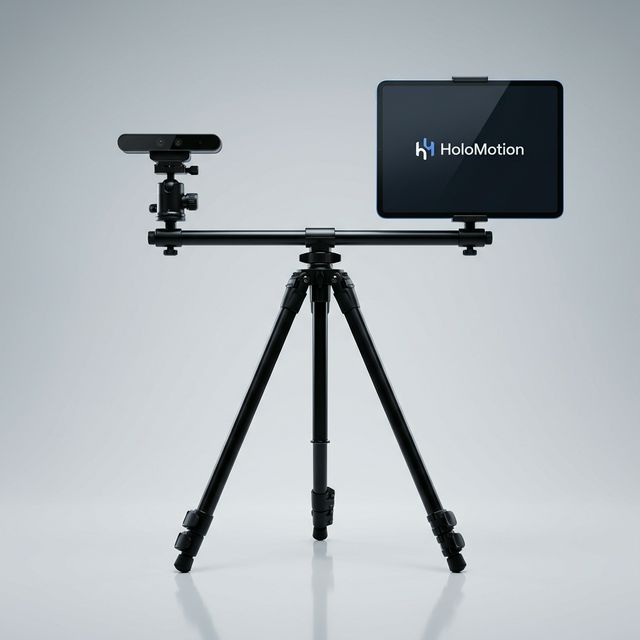

H200
H200
Digital Box
Ultra-compact computing unit — bring your own display

Software Platform

HW + SW

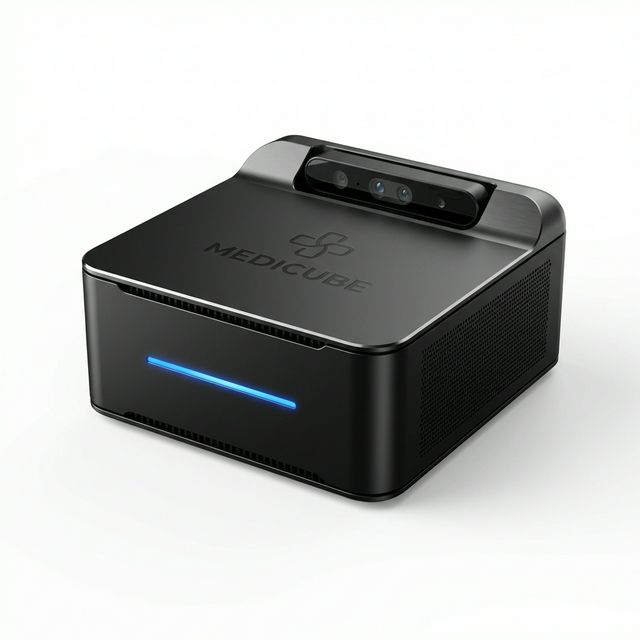

HoloMotion Edge

Plug-and-play AI Appliance with onboard RGB-D & chips.

HoloMotion Edge
  • ✓ On-device AI
  • ✓ Integrated Camera
  • ✓ No PC Required
WEB

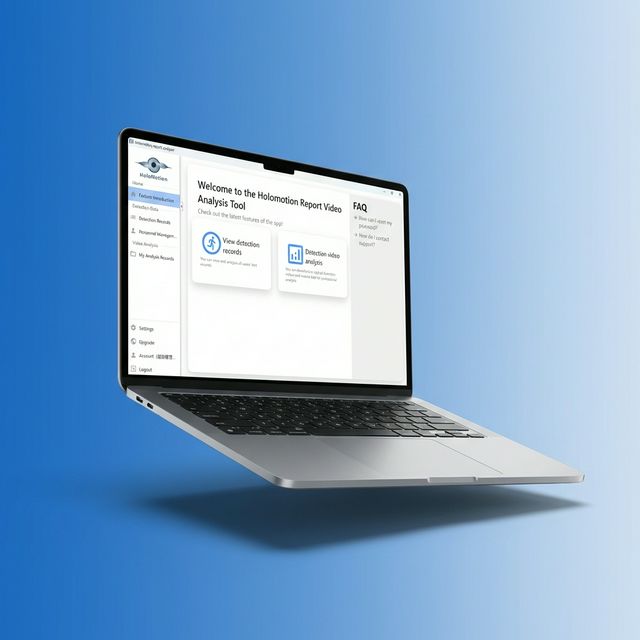

HoloMotion SaaS

Full-cycle patient & assessment data management platform with structured reports, multi-period comparison, and personalized training plans.

HoloMotion SaaS
  • ✓ Multi-user
  • ✓ Cloud Sync
  • ✓ PDF Reports
DEV

HoloMotion API

Flexible API integration service connecting HoloMotion with hospital HIS systems, corporate HR health platforms, and insurance risk management systems for seamless data exchange.

HoloMotion API
  • ✓ Python SDK
  • ✓ Raw Data
  • ✓ Custom Pipelines
iOS / Android

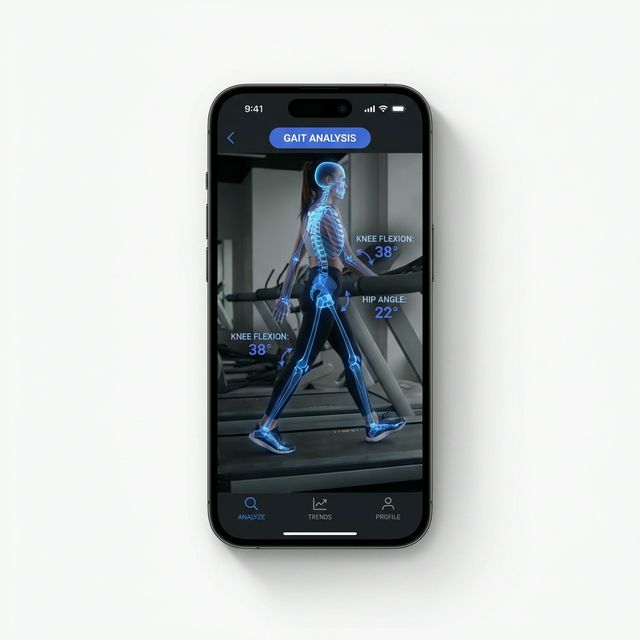

Mobile App

Capture & Instant Feedback

Mobile App
  • ✓ LiDAR Support
  • ✓ Auto-Record
  • ✓ Slow-mo Analysis

Functional Assessment Packages

Click to see detailed information for each assessment

Gait Analysis
MODULE

Gait Analysis

Full gait cycle spatio-temporal & biomechanical analysis

View Details →
Running Form
MODULE

Running Form

47 key angle metrics & 40+ biomechanical data points

View Details →
Risk Screening
MODULE

Risk Screening

Comprehensive musculoskeletal injury risk assessment

View Details →
Joint ROM
MODULE

Joint ROM

Precise range of motion measurement by body segment

View Details →
TUG Test
MODULE

TUG Test

Timed Up-and-Go with dual-dimension gait assessment

View Details →
Body Posture & Spine
MODULE

Body Posture & Spine

Posture evaluation & scoliosis screening

View Details →

Analysis Software

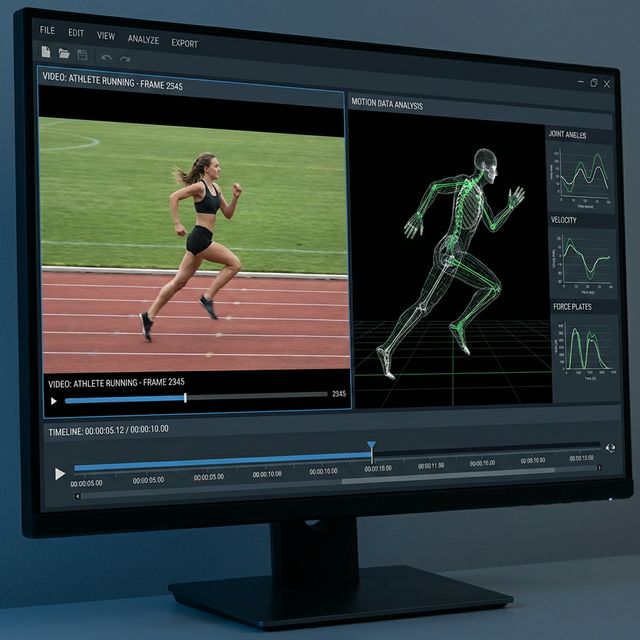

Data-Video Sync PRO TOOL

Data-Video Sync

Frame-by-frame overlay analysis with 20+ biomechanical metrics

  • ✓ Side-by-side
  • ✓ Slow Motion
  • ✓ Annotation Tools
View Details →

Technical Specifications

Frame Rate
30fps (Standard) / 60fps (High Speed)
Sensor Support
LiDAR, RGB-D, Standard RGB
Output Formats
CSV, C3D, JSON, MP4 Overlay
Accuracy
< 2° Angular Error (vs Vicon)
Latency
Near Real-time (~200ms processing)
3D Camera
Depth
Principle: Active Stereo IR
Baseline: 50mm
Accuracy: < 2% (1280×800 @ 2m, 81% ROI)
Resolution: 1280×800 @ 30fps / 640×400 @ 60fps
FOV: H91° / V66° / D101° ± 3° @ 2m
Sensor: Global Shutter

IR
Resolution: 1280×800 @ 30fps / 640×400 @ 60fps
FOV: H94° / V68° / D104° ± 3°

RGB
Resolution: 1920×1080 @ 30fps / 1280×720 @ 60fps
FOV: 16:9 H86° / V55° / D94° ± 3°
        4:3 H63° / V50° / D75° ± 3°

Range: 0.15 – 10m · Interface: USB 3.0 (single cable)
Edge SoC
CPU: 4×A76 @ 2.4 GHz + 4×A55 @ 1.8 GHz
GPU: Mali-G610 MP4
NPU: 6 TOPS (INT8)
RAM: LPDDR4x / LPDDR5, up to 32 GB
Process: 8nm
Operating System
Linux Ubuntu 24
